Traxxas Rally Ford Fiesta 1/10 Rally Racer

$389.95

Traxxas Rally Ford Fiesta 1/10 Rally Racer


1/10 Scale Ford Fiesta® ST Rally

Rally-Bred Performance On-Road or Off-Road

To be competitive, rally cars must offer blistering performance on pavement, dirt-roosting speed off-road, a trick suspension, and 4WD to put the power down. The Traxxas Ford Fiesta ST Rally puts you in the driver’s seat for intense all-surface rally action! The Fiesta ST Rally is specially tuned with a low center of gravity (Low-CG) chassis and oil-filled Ultra ShocksTM to be agile on the track. When the pavement ends, its full-time 4WD, long-travel suspension, and rally-bred tires dig in for ultra-fast bumper-to-bumper racing action. The powerful Titan® 550 motor muscles you to the front of the pack and waterproof electronics allow authentic all-weather racing. The Traxxas Ford Fiesta ST Rally is Ready-To-Race®, and built Traxxas-Tough for versatile, exciting driving fun that could only come from Traxxas.

­
QUICK FEATURES Ford Fiesta ST Rally(#74054-4)
­
  • Officially licensed Ford Fiesta ST body
  • Full-time 4WD
  • TQ™ 2.4GHz radio system
  • Waterproof electronics for all-weather, all-season RC excitement
  • Titan® 12-turn 550 modified motor
  • Powerful XL-5 waterproof electronic speed control
  • Built brushless ready for easy upgrade to Velineon® power
  • Low-CG fiber-composite monocoque chassis with high approach angle front bumper
  • Race-proven sealed differentials
  • Scale all-terrain front and rear tires offer superior on- and off-road traction
­
Battery and Charger Sold Separately
Choose the speed and performance you want!
Select the right Traxxas iD battery to fit your needs from the options below
Runtime* 15+ Minutes 20+ Minutes 30+ Minutes
Battery 2923X (1)
3000mAh NiMh
2950X (1)
4200mAh NiMH
2843X (1)
5800mAh 2S LiPo
Skill Level 1 1 1

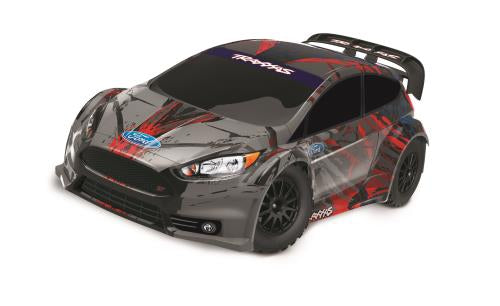

Ford Fiesta ST Rally (#74054-4) Three-Quarter Front View

100% Fully Assembled and Ready-To-Race®

The Traxxas Ford Fiesta ST Rally rolls out of the box ready for driving fun with factory-adjusted TQTM 2.4GHz radio, XL-5 power system, and detailed instructions. Traxxas backs the Rally and all of our products with top-notch support that is second to none. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your car running strong with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun--and fast!



MODEL 74054-4: Ford Fiesta® ST Rally, 1/10 Scale, Fully-Assembled, Waterproof,
Ready-To-Race®, with TQ™ 2.4GHz Radio System, XL-5 Electronic Speed Control,
and Licensed ProGraphix® Painted Body.



Vehicle Specs
Length: 21.0 inches (535 mm)
Front Track: 11.0 inches (281 mm)
Rear Track: 11.0 inches (281 mm)
Center Ground Clearance: 0.82 inches (21 mm)
Weight: 97.6 ounces (2.77 kg)
Height (overall): 8.1 inches (206 mm)
Wheelbase: 12.8 inches (324 mm)
Shock Length: Long (front), XXLong (rear)
Tires: Traxxas 2.2" Pre-Glued with Foam Inserts
Tire Diameter: 4.02 inches (102 mm) (front and rear)
Wheels (front/rear): 2.2" 12-Spoke Rally Replica
Wheel Diameter: 2.2 inches (56 mm) Outer
3.0 inches (76 mm) Inner
Speed Control Type: XL-5 Electronic Speed Control
Motor (electric): Titan 12T 550 (12-Turn)
Overall Drive Ratio: 19.69 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Drive System: Shaft-Driven, Direct Drive 4WD
Steering: Dual-Bellcrank with Integrated Servo Saver
Radio System: TQ 2.4GHz Radio with #6519 3-Channel Micro
Body: Licensed Ford Fiesta ST Rally Body
Skill Level: 1
Included Accessories: Precision Tool Set
Required Items: Battery, charger, 4 "AA" Batteries (for transmitter)
ESC Specs
Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
Case Size: 31 mm x 55 mm x 15.5 mm
Weight: 2.44 Ounce
Motor Limit: 15-turns (540 Size)
12-turns (550 Size)
On Resistance Forward: 0.007 Ohms
On Resistance Reverse: 0.014 Ohms
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5"
Input Harness Wire: 26 Gauge / 9"
PWM Frequency: 1600 Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal shutdown
Profile selection: Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode: 50% FWD, 100% brakes, 50% REV
Single-button setup: Yes, Traxxas EZ-Set
